5006-2500 (250cm Door Profile)
Door Profile
Material : 60x60x1.5mm Galvanised Profile
Height : 250cm
Used together with the 250 cm U CHANNEL (Code: 5005-2500) for shutter door manufacturing. 26 pieces of Shutter Panels (5101 series) should be used for the 250cm door profile.
There is a 65mm gap at the top and bottom of the door profiles.
Door profiles are manufactured without flanges from 1.5mm thick 60x60mm GALVANISED profile.

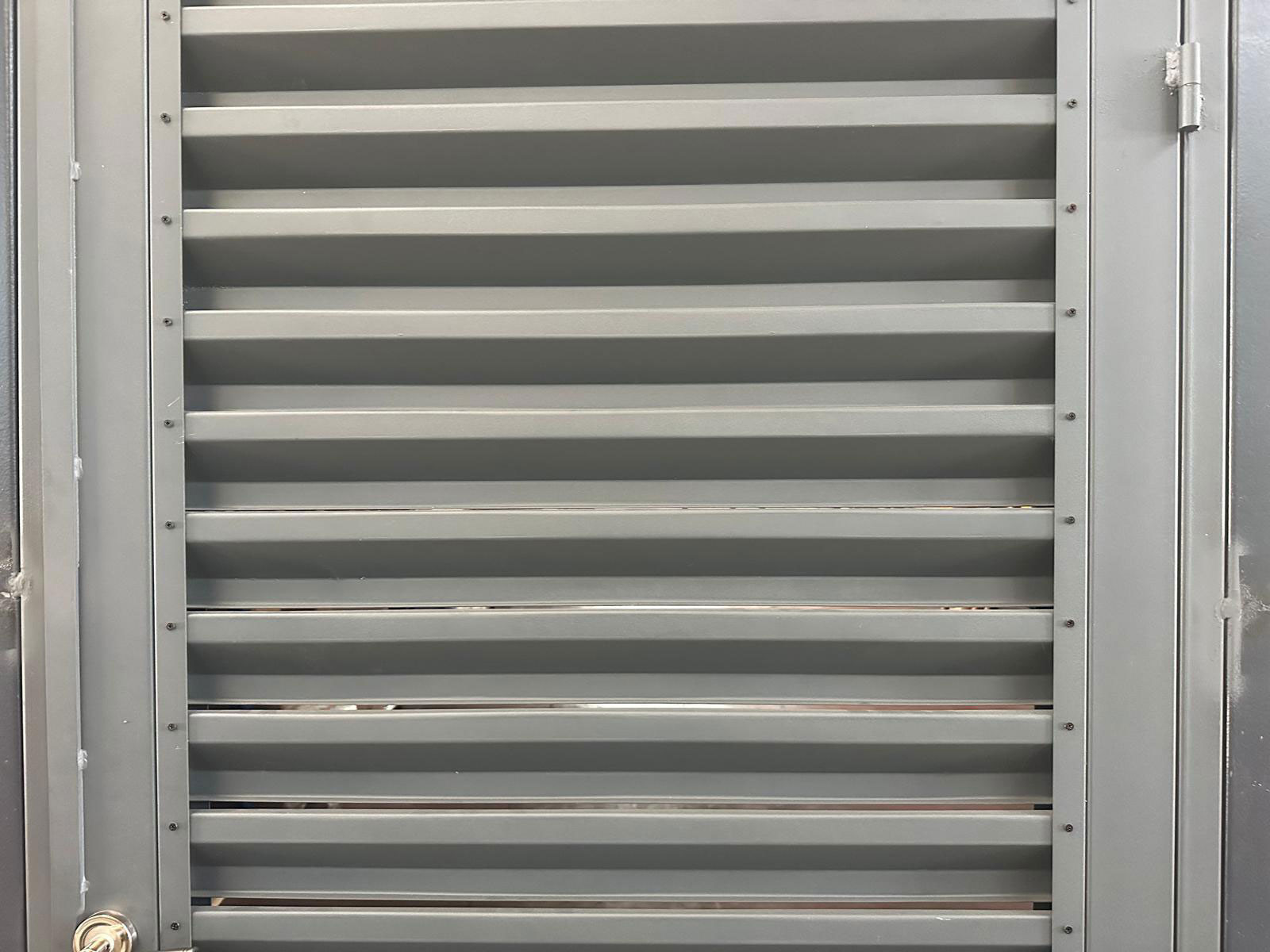

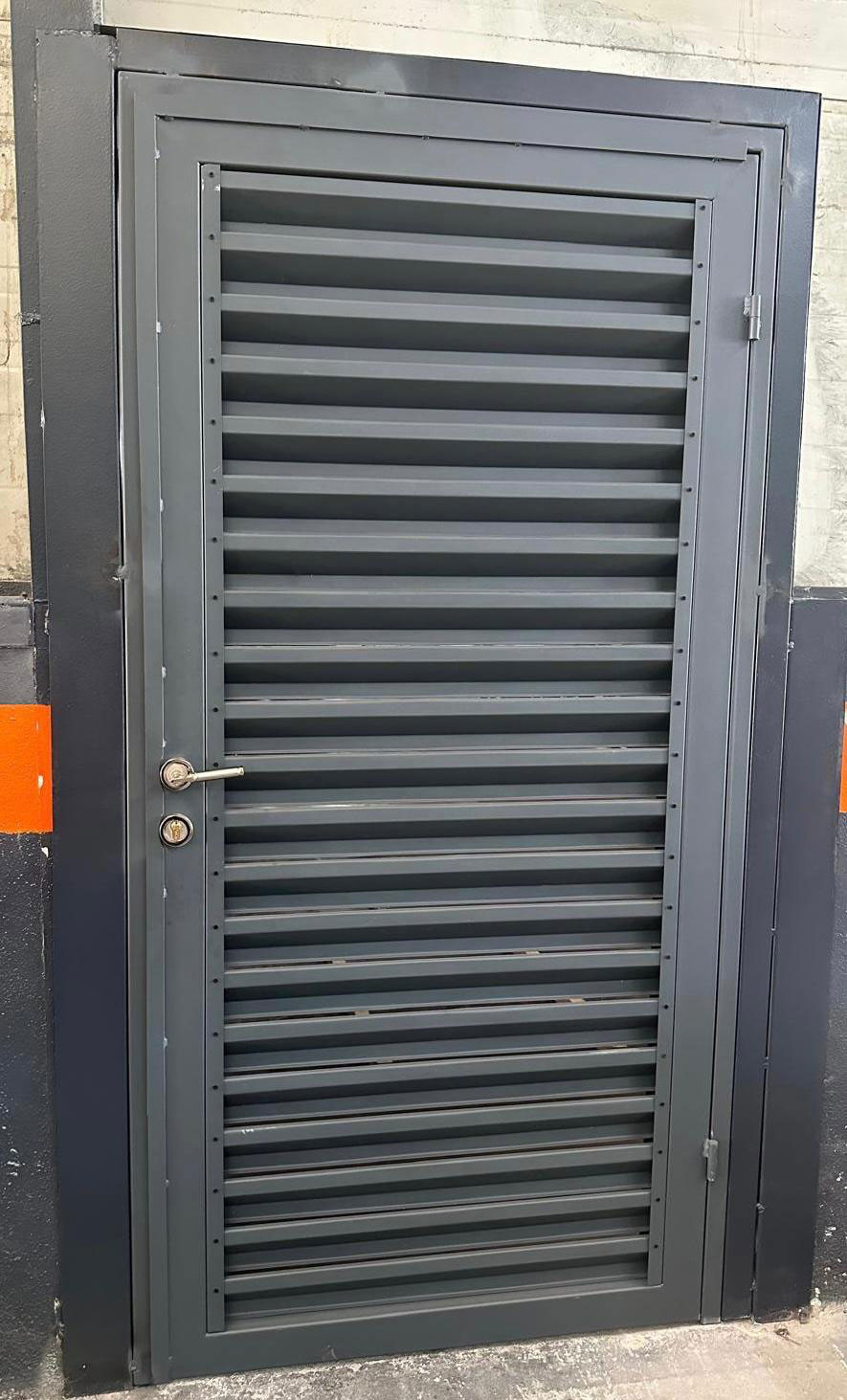

Door Profiles are designed for pedestrian entrance doors and garage doors in your shutter fence projects, and are manufactured either painted or unpainted upon request.
